Brand NatVin · Interactive Display · Model KL-E098SA
NatVin 98 Inch 4K Touch Flat Panel Display (Model: KL-E098SA)
Flagship 98" 4K UHD Interactive Display with ≥400 cd/m² Brightness, 4mm AG Tempered Glass, Octa-Core Android 14 (8GB+128GB), Built-in 50MP Camera + 8-Array Mics, and 65W Type-C.
NatVin 98 Inch 4K Touch Flat Panel Display (Model: KL-E098SA)
The flagship NatVin 98 Inch 4K UHD Interactive Flat Panel Display (Model: KL-E098SA) features an ultra-large 98-inch D-LED panel with ≥ 400 cd/m² high brightness, 4mm Mohs Level 7 anti-glare tempered glass, Octa-Core Android 14 (8 GB DDR + 128 GB ROM), built-in 50MP camera + 8-array microphones, and 20W×2 + 20W subwoofer audio for auditoriums, command centers, and executive conference suites.
Flagship 98" 400-Nit 4K Panel2158.84 × 1214.35 mm visible area with ≥400 cd/m² brightness & 4mm AG glass.
50MP Camera + 8-Mic Array + 65W Type-CComplete enterprise AV & control connectivity including DP, Dual LAN, RS232, and HDMI Out.
Industrial Aluminum Honeycomb Build2234 × 101 × 1340 mm structural frame with 900 × 600 mm VESA mounting.
| 01. Display Specifications (Certified Model: KL-E098SA) | |
|---|---|
| Product Name / Model | NatVin 98 Inch 4K Touch Flat Panel Display — KL-E098SA |
| Screen Size & Backlight | 98" (16:9) · D-LED Backlight |
| Resolution & Frame Rate | 3840 × 2160 (4K UHD) @ 60 Hz |
| Brightness & Contrast | ≥ 400 cd/m² · 1,200:1 (Typ.) |
| Response Time & Pixel Pitch | 8 ms · 562.2 mm × 562.2 mm (µm) |
| Viewing Angle & Color Gamut | 178° (H) / 178° (V) · 72% NTSC · 1.07G Colors (10-bit) |
| Visible Area | 2158.84 (H) × 1214.352 (V) mm |
| Service Life | 30,000 Hours |
| 02. System Properties, Camera & Audio | |
| Operating System | Android 14 Smart OS (Supports switching between Android & Optional Windows OPS) |
| CPU & GPU Architecture | Octa-Core (Cortex-A73×4 + Cortex-A53×4) @ 2.2 GHz · Mali-G52×8 GPU |
| Memory (RAM) & Storage (ROM) | 8 GB DDR RAM + 128 GB Standard ROM |
| Camera & Microphone | Built-in 50 Million Pixel (50MP) Camera + 8-Array Microphones |
| Sound Power | 20W × 2 + 20W × 1 Bass Effect Speaker |
| Wireless & Bluetooth | 2.4 GHz / 5 GHz Dual-Band Wi-Fi (802.11a/b/g/n/ac) + Wi-Fi Hotspot · Bluetooth 5.0 |
| 03. Touch & Writing System | |
| Touch Technology & Points | Infrared (IR) Touch · Up to 20 Simultaneous Touch Points |
| Glass Protection | 4mm AG Anti-Glare Tempered Glass · Mohs Level 7 Hardness · Full Lamination |
| Touch Precision & Resolution | ±1 mm Precision · 32767 × 32767 · 12 Mbps Transmission Speed · Driver-Free HID |
| 04. Front & Rear I/O Interfaces | |
| Front Interfaces | 1 × Global Function Type-C (Supports 65W Charging), 3 × USB 3.0, 1 × Touch USB, 1 × HDMI IN |
| Rear Input Interfaces | 2 × HDMI IN, 1 × DP, 1 × OPS Slot, 2 × LAN (RJ45), 1 × USB 2.0, 2 × USB 3.0, 1 × USB Type-C, 1 × VGA, 1 × Audio In, 1 × RS232 |
| Output Interfaces | 1 × Optical Out, 2 × Touch Out, 1 × Line Out, 1 × HDMI Out |
| 05. Power, Dimensions & Accessories | |
| Power Supply & Consumption | 110V ~ 240V AC, 50/60 Hz · Max ≤ 550W (Exclude OPS) · Standby < 0.5W · OPS Power: 18V DC / 5A |

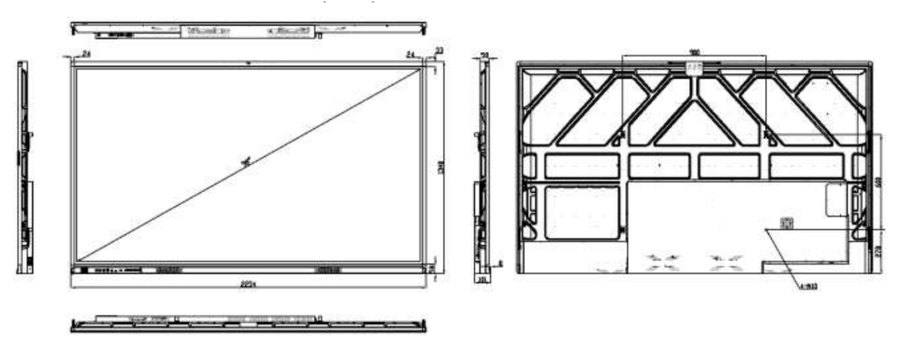

| Bare Size (L × W × H) | 2234 × 101 × 1340 mm |
| Packing Size (L × W × H) | 2358 × 280 × 1485 mm |
| Weight (Net / Gross) | Net Weight: About 97 Kg · Gross Weight: About 117 Kg |
| VESA Mount & Material | 900 × 600 mm (4-M8 Screw) · Aluminum profile / sheet metal & aluminum honeycomb panel (Black) |
| Included Accessories | 1.8m Power Cable × 1, Remote Control × 1, Wall Mounted Bracket × 1, Magnetic Touch Pen × 1 (Movable Stand Optional) |
