NatVin YNX-45-006-28dBi (YNX-45-006-28dBi) — 28 dBi × 2 High-Gain 4G Bullet Antenna

28 dBi × 2 High-Gain Omnidirectional 4G Bullet Antenna (698–960 / 1710–2690 MHz), Φ63×430mm radome, RG58 dual cable, and DC grounding lightning protection.

NatVin YNX-45-006-28dBi (YNX-45-006-28dBi) — 28 dBi × 2 High-Gain 4G Bullet Antenna

NatVin YNX-45-006-28dBi (YNX-45-006-28dBi) — 28 dBi × 2 High-Gain 4G Bullet Antenna

The NatVin YNX-45-006-28dBi (Uni Link Part No: YNX-45-006-28dBi) is an ultra high-gain 28 dBi × 2 dual-feed omnidirectional 4G bullet antenna engineered for focused long-range signal reception and transmission across 698–960 / 1710–2690 MHz in remote plantations, mining sites, blankspot areas, and Smart Agro solar telemetry poles.

NatVin YNX-45-006-28dBi Antenna28 dBi × 2 High-Gain Array

Focused long-range 698–960 / 1710–2690 MHz signal capture with VSWR ≤ 2.0 and 50W max input power.

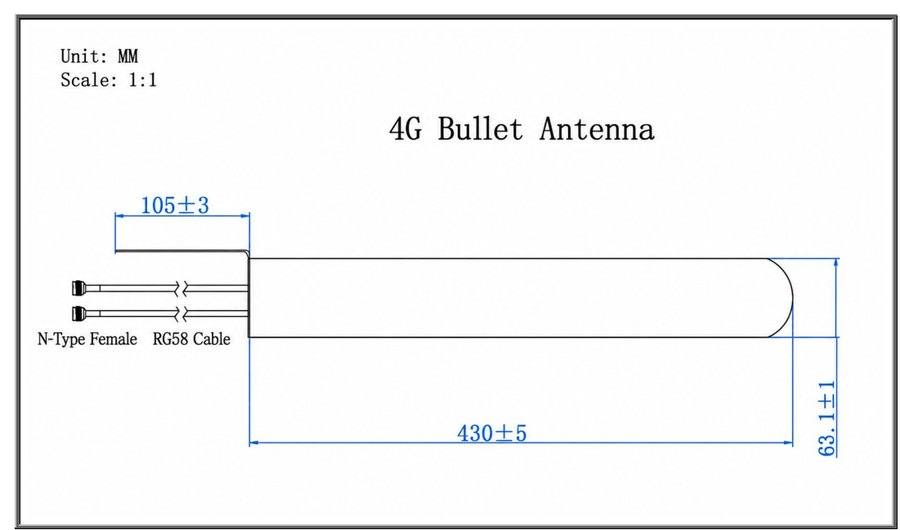

NatVin YNX-45-006-28dBi Technical DrawingΦ63 × 430 mm 4G Bullet Radome

Heavy-duty L-bracket pole installation (Φ25–40 mm) with dual RG58 coaxial leads and DC grounding.

01. Electrical Specifications (Part No: YNX-45-006-28dBi)
Brand & Part NumberNatVin — YNX-45-006-28dBi (Uni Link Part No: YNX-45-006-28dBi)
Frequency Range (MHz)698~960 / 1710~2690 MHz
Gain (dBi)28 dBi × 2
Input Impedance & VSWR50 Ω · V.S.W.R ≤ 2.0
Polarization & RadiationHorizontal Polarization · Omnidirectional
Max Input Power50 W
Lightning ProtectionDC Grounding
02. Mechanical & Environmental Specifications
Antenna Size (mm)Φ63 × 430 mm (4G Bullet Antenna)
Cable Type & LengthRG58 Coaxial Cable · 3m or Customized
Connector TypeSMA Male / N-Type Female or Customized (RoHS Compliant)
Mounting & Pole DiameterL-Bracket Installation · Fits Pole Diameter Φ25 – Φ40 mm
Weight325 g
Operating & Storage TemperatureOperating: -20°C ~ +85°C · Storage: -40°C ~ +85°C
03. Certified Mechanical & Environmental Durability Tests
Mechanical Endurance1,000-cycle ±60° Bending Test (120g load), 15 lbs Static Strength Test, ≥ 7 Kg Tensile Pulling Force Test, Tri-Axis Vibration Test
96-Hour Environmental Chamber TestsGB1266-86 Salt Spray Corrosion Test (96h), +85°C Heat Test (96h), 90–95% RH Humidity Test (96h), -40°C Cold Test (96h)
