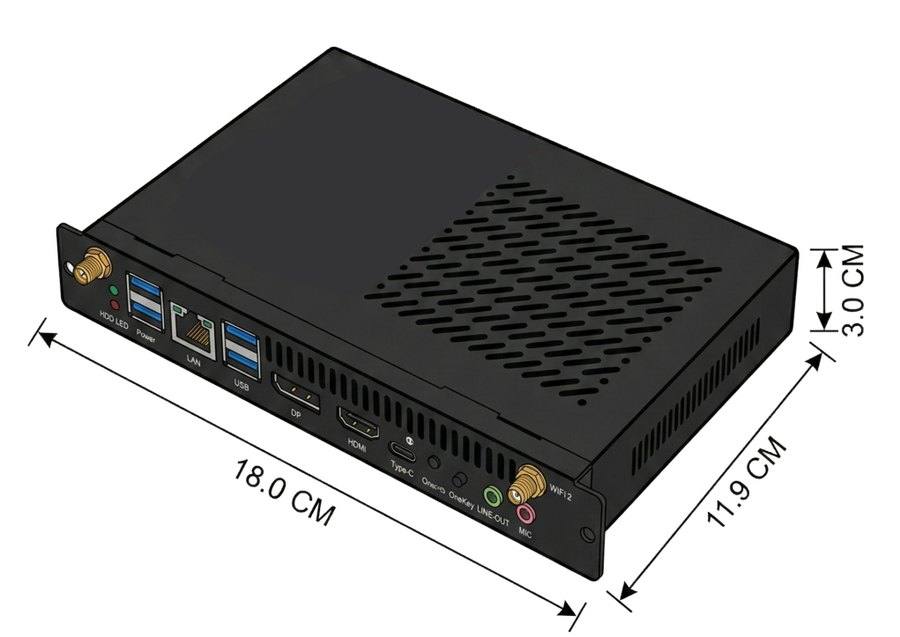

NatVin OPS-H512 — 12th Gen Intel® Core™ i5 / i7 OPS PC Module
12th Gen Intel® Core™ Alder Lake Mobile i5/i7 Open Pluggable Specification (OPS) PC with DDR4 up to 64GB, NVMe + 2.5" SATA, Dual 4K@60Hz Output, and One-Click BIOS Restore.
NatVin OPS-H512 — 12th Gen Intel® Core™ i5 / i7 Open Pluggable Specification (OPS) PC

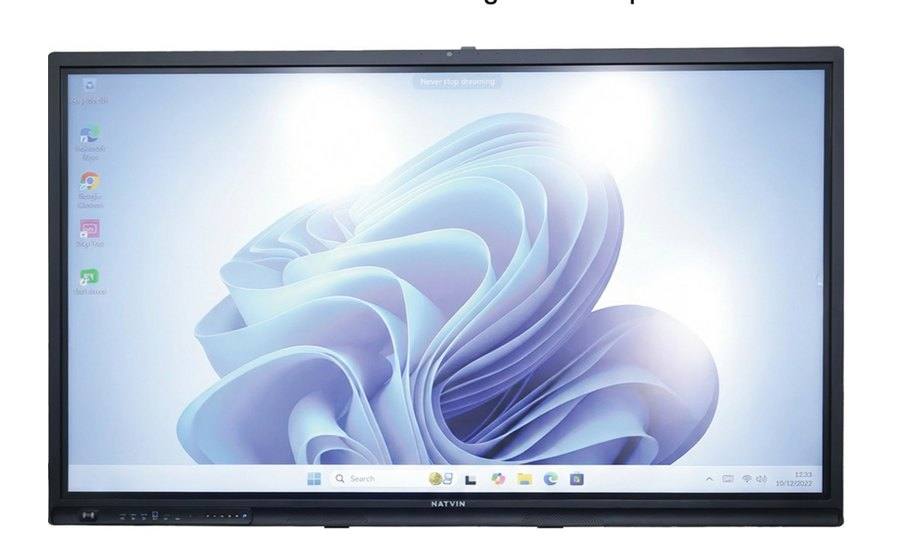

The NatVin OPS-H512 is a high-performance Open Pluggable Specification (OPS) PC module engineered to turn your NatVin Interactive Flat Panel Display (65", 75", 86", or 98") into a dual-OS big-screen all-in-one Windows/Linux touch computer without external cabling.
12th Gen Intel® Alder Lake CPUIntel® Core™ i5 / i7 Mobile CPU (e.g. i5-12450H, 8 Cores / 12 Threads, up to 4.4 GHz Turbo).
4K@60Hz JAE 80-Pin + HDMI + DPRear JAE 80-Pin slot connector plus front HDMI 2.0, DP 1.4, and Type-C DP Out.
One-Key Backup & System RestoreSupports Windows 10/11 & Linux, BIOS one-click restore, and wireless mobile hotspot.
| 01. General System Specifications (Model: OPS-H512) | |
|---|---|
| CPU Processor | Intel® Gen 12th Alder Lake Mobile Core™ i5 / i7 CPU (e.g., i5-12450H) · Base 2.0 GHz, Turbo 3.3–4.4 GHz · 8 Cores / 12 Threads · 12 MB Intel® Smart Cache · TDP 35–95W |
| Chipset & Graphics | Integrated in CPU · Intel® UHD Graphics for 12th Gen Intel® Processors |
| Memory (RAM) | 2 × SO-DIMM DDR4 2400 / 2666 MHz Memory Slots, Up to Max 64 GB |
| Storage Expansion | 1 × M.2 PCIe Slot (for NVMe / SATA SSD) + 1 × 2.5" mSATA Slot (Supports HDD & SSD) |
| Display Output | 1 × HDMI 2.0 (4K@60Hz) · 1 × DP 1.4 Out (4K@60Hz) · Synchronous / Asynchronous Display |
| Ethernet & Wireless | LAN: 1 × 10/100/1000 Mbps Gigabit Ethernet · Wi-Fi: 1 × M.2 2230 Slot supporting Wi-Fi & Bluetooth (Optional Wi-Fi 6) + Mobile Hotspot |
| Audio | HD Audio Support |
| 02. I/O Ports, Power, Dimensions & OS | |
| Front Interface | 4 × USB 3.0, 1 × Type-C (USB 3.0 & DP Out, No Charging), 1 × HDMI, 1 × DP, 1 × Line-Out, 1 × Mic-In, 1 × Gigabit LAN, 1 × Power On/Off, One-Key Backup/Restore |
| Rear Interface | 1 × JAE 80-Pin Connector: HDMI 2.0 Out (4K@60Hz) |
| Power Supply | 19V / 4.7A DC Input |
| Dimensions & Weight | OPS Size: 195 × 180 × 30 mm (UnitBox: 282 × 257 × 79 mm) · Net Weight: 1.2 Kg (Gross Weight: 1.4 Kg) |
| Environmental | Working Temp: 0°C ~ 45°C · Storage Temp: -40°C ~ 80°C · Working Humidity: 10% ~ 95% @ 40°C Non-condensing |
| Operating System & BIOS | Supports Windows 10, Windows 11 OEM, and Linux · BIOS supports diskless start, power-on auto start, and one-click system backup & restore |
