NatVin YNX-45-007-18dBi (YNX-5G-202-018-111) — 18 dBi 4G/5G Omnidirectional Antenna
18 dBi High-Gain 4G/5G Omnidirectional Fiberglass Antenna (698–960 / 1710–2690 / 3300–3600 / 4800–5000 MHz) with IP65 protection, DC grounding, and 10m SMA cable.
NatVin YNX-45-007-18dBi (YNX-5G-202-018-111) — 18 dBi High-Gain 4G/5G Omnidirectional Antenna
The NatVin YNX-45-007-18dBi (Uni Link Part No: YNX-5G-202-018-111) is an industrial IP65 weatherproof high-gain omnidirectional antenna covering full 4G LTE and 5G NR Sub-6GHz bands (698–960 / 1710–2690 / 3300–3600 / 4800–5000 MHz) with a specified gain of 18 dBi, DC grounding lightning protection, and a 10-meter low-loss SMA cable.
18 dBi 4G/5G Omnidirectional GainWide-band 698–5000 MHz coverage with 360° omnidirectional reception and VSWR ≤ 2.0.
IP65 Weatherproof & 10m CableΦ63 × 230 mm fiberglass radome, 10m cable, L-bracket pole mount (Φ25–40 mm), and 60 m/s wind rating.
| 01. Electrical Specifications (Part No: YNX-45-007-18dBi / YNX-5G-202-018-111) | |
|---|---|
| Brand & Part Number | NatVin — YNX-45-007-18dBi (Uni Link Part No: YNX-5G-202-018-111) |
| Frequency Range (MHz) | 698~960 / 1710~2690 / 3300~3600 / 4800~5000 MHz (4G LTE & 5G Sub-6GHz) |
| Gain (dBi) | 18 dBi |
| Input Impedance & VSWR | 50 Ω · V.S.W.R ≤ 2.0 |
| Polarization & Radiation | Horizontal Polarization · Omnidirectional (360°) |
| Max Input Power | 50 W |
| Lightning Protection | DC Grounding |
| 02. Mechanical & Environmental Specifications | |

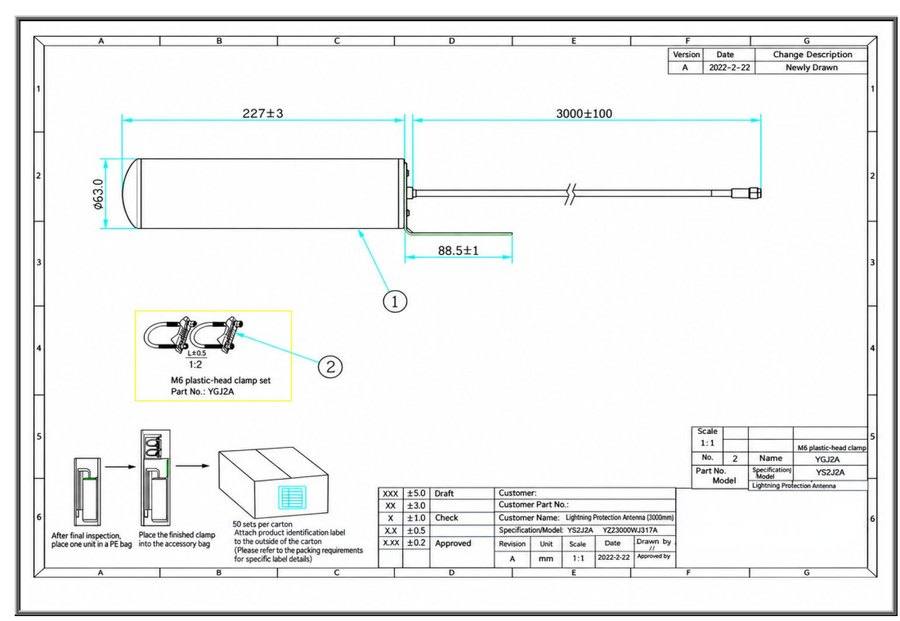

| Antenna Size (mm) | Φ63 × 230 mm |
| Antenna Cable Length & Connector | 10 Meters · SMA Connector (SMA-J RoHS / N-K RoHS) |
| IP65 Weatherproof Compliance | YES (Outdoor UV & Water Resistant) |
| Mounting & Pole Diameter | L-Bracket Installation · Fits Pole Diameter Φ25 – Φ40 mm (M6 Clamp Set YGJ2A) |
| Wind Resistance & Weight | Rated Wind Speed: 60 m/s · Weight: 325 g |
| Operating & Storage Temperature | Operating: -20°C ~ +85°C · Storage: -40°C ~ +85°C |
| 03. Certified Mechanical & Environmental Durability Tests | |
| Bending & Strength Test | 120g load @ 30cm, ±60° pendulum for 1,000 cycles (Pass) · 15 lbs static load for 1 minute (Pass) |
| Pulling Force & Vibration Test | Withstands ≥ 7 kgf tensile pulling force · 1.10mm amplitude @ 33.30 Hz vibration along X/Y/Z axes (Pass) |
| 96-Hour Chamber Durability | GB1266-86 Salt Spray Test (96h @ 45–47°C), Heat Test (+85°C for 96h), Humidity Test (90–95% RH @ 40°C for 96h), Cold Test (-40°C for 96h) |
